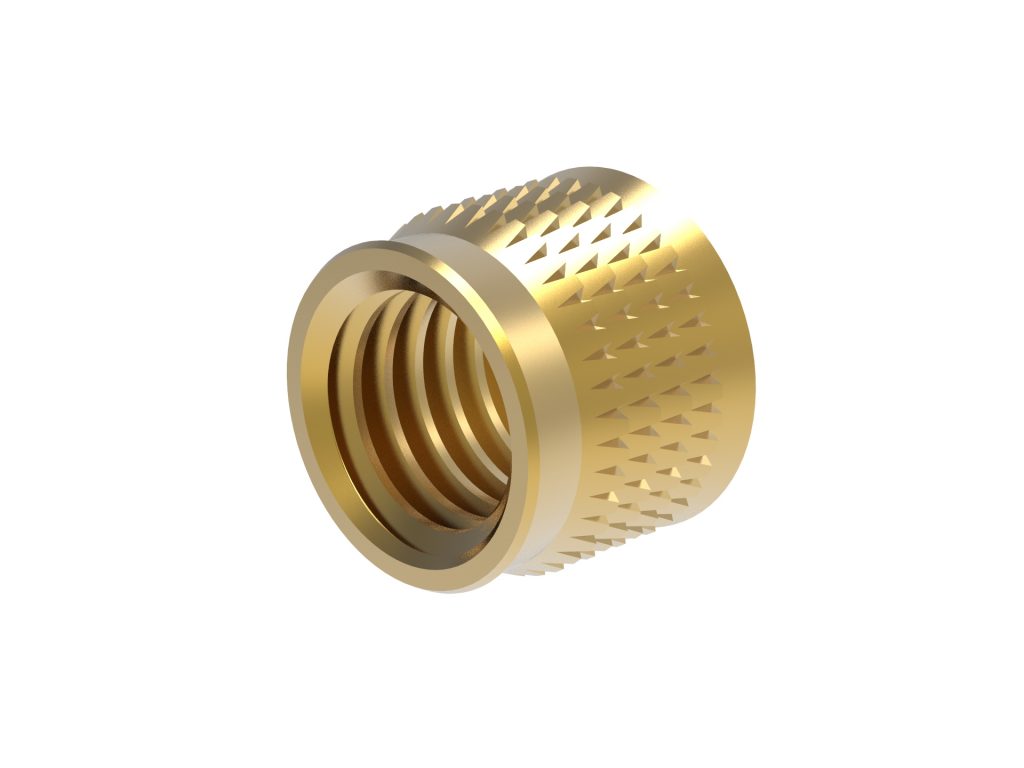

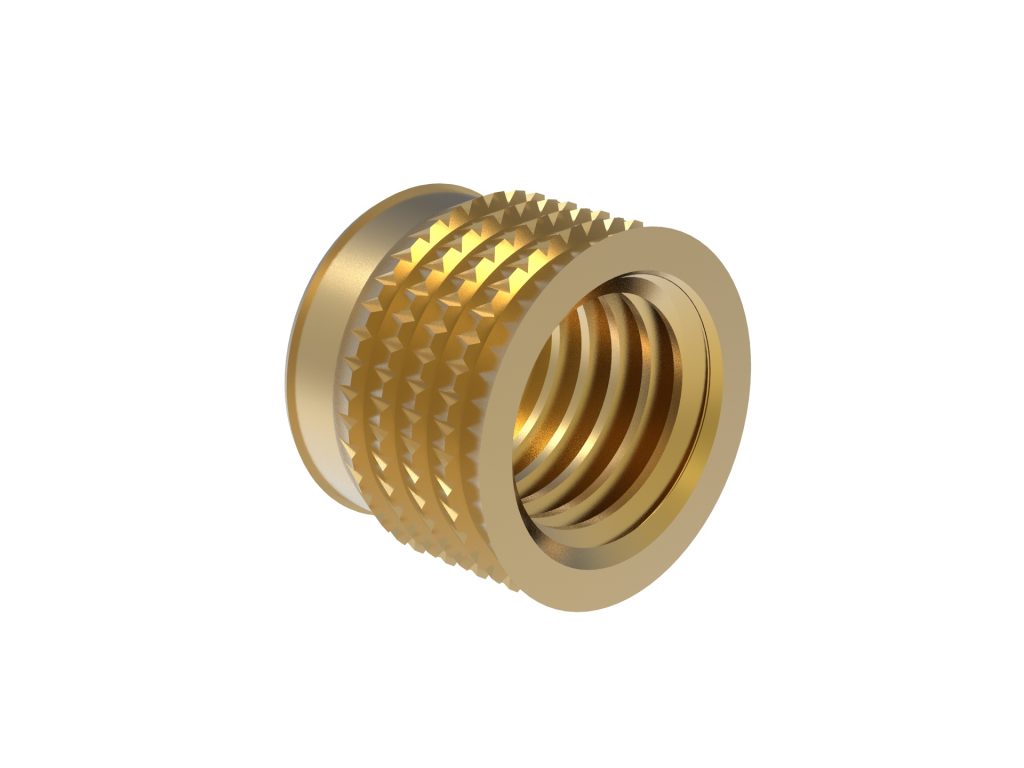

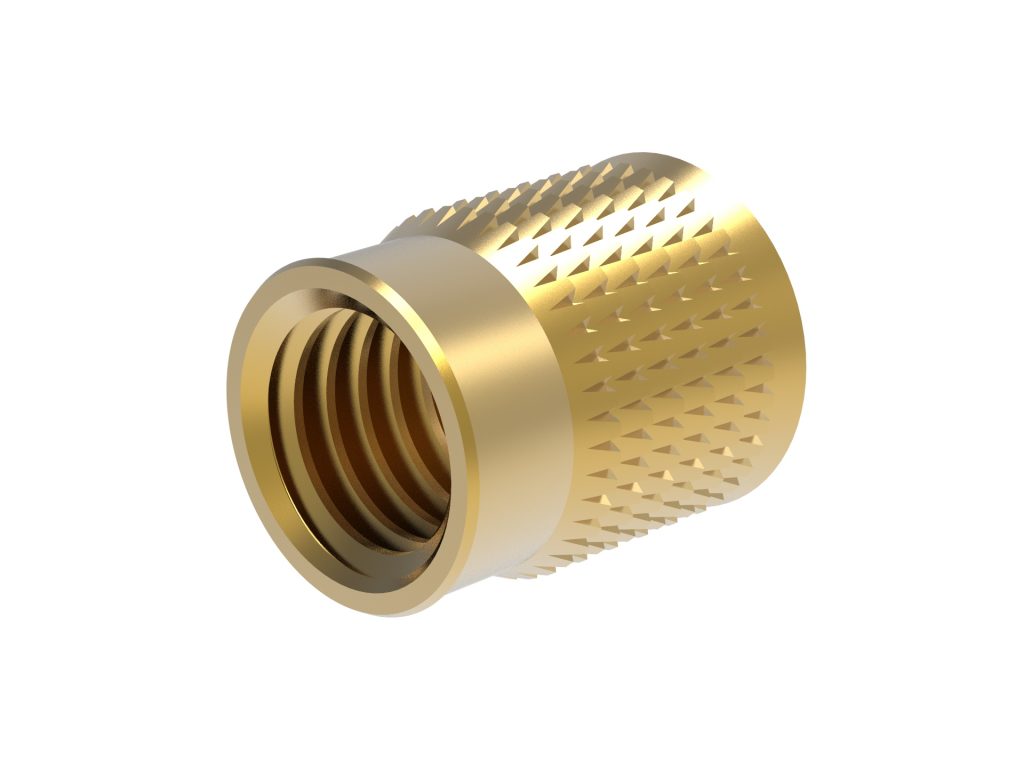

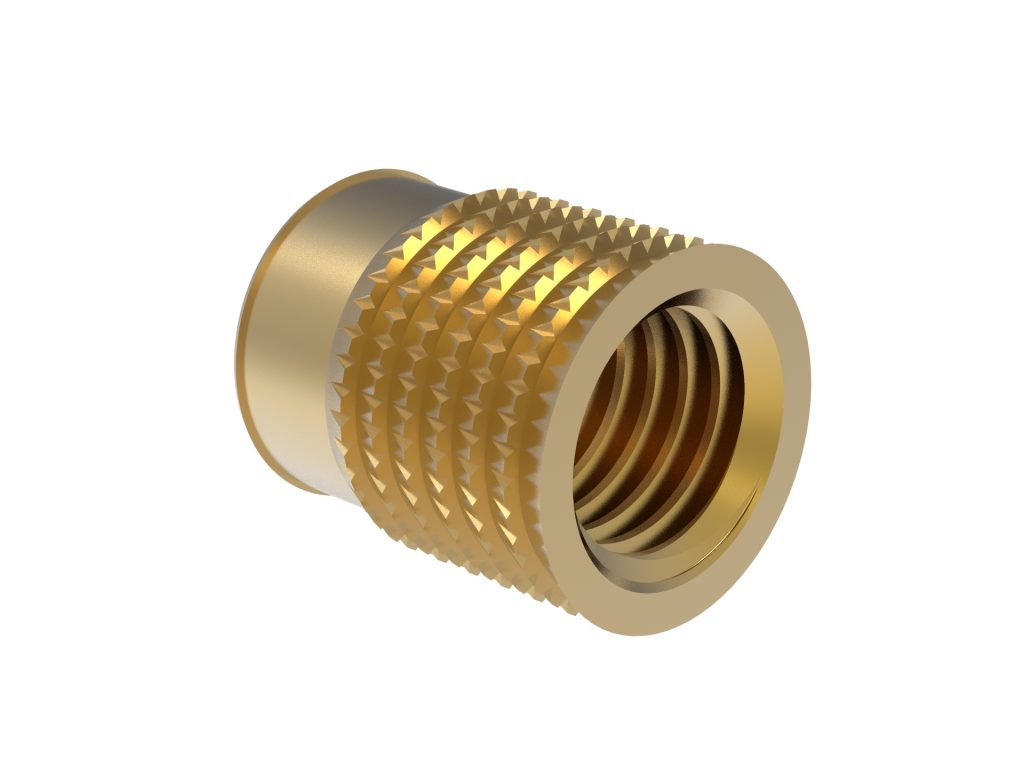

MU Multisert® - Unheaded - Brass
Threaded Inserts for post-mould installation

For use in thermoplastic materials
Install by press fit: cold, hot or by ultrasonics
Regular or Short lengths
Stocked in thread sizes: M3 - M10

↓ Scroll and select product code to show Images and Drawing

Product Code

Thread

Thread Style

Head Style

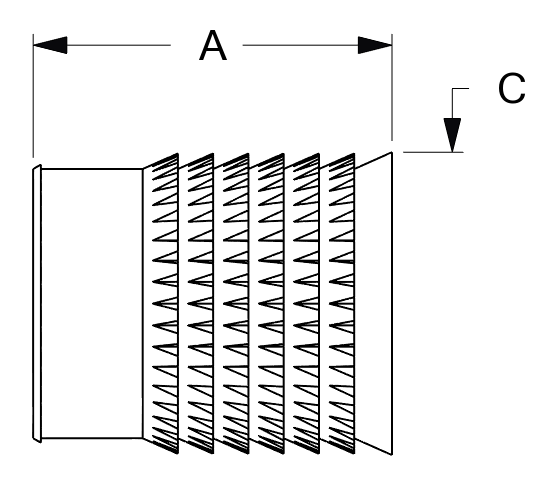

Dimensions (mm)

Length (A)

Ø B

Head (B)

Ø C

Install Hole Ø

Thread Length

Product Code: MU.M3-04

Thread: M3

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 4.1

Ø B: –

head: –

Ø C: 4.3

Install Hole Ø: 3.7 - 4.0

Thread Length: –

Product Code: MU.M3-05

Thread: M3

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 5.2

Ø B: –

head: –

Ø C: 4.3

Install Hole Ø: 3.7 - 4.0

Thread Length: –

Product Code: MU.M4-06

Thread: M4

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 5.6

Ø B: –

head: –

Ø C: 6.2

Install Hole Ø: 5.4 - 5.9

Thread Length: –

Product Code: MU.M4-08

Thread: M4

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 8.5

Ø B: –

head: –

Ø C: 6.2

Install Hole Ø: 5.4 - 5.9

Thread Length: –

Product Code: MU.M5-07

Thread: M5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 6.6

Ø B: –

head: –

Ø C: 7.0

Install Hole Ø: 6.0 - 6.5

Thread Length: –

Product Code: MU.M5-10

Thread: M5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 10.1

Ø B: –

head: –

Ø C: 7.0

Install Hole Ø: 6.0 - 6.5

Thread Length: –

Product Code: MU.M6-08

Thread: M6

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 7.7

Ø B: –

head: –

Ø C: 8.6

Install Hole Ø: 7.7 - 8.2

Thread Length: –

Product Code: MU.M6-12

Thread: M6

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 12.3

Ø B: –

head: –

Ø C: 8.6

Install Hole Ø: 7.7 - 8.2

Thread Length: –

Product Code: MU.M8-08

Thread: M8

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 8.3

Ø B: –

head: –

Ø C: 11.0

Install Hole Ø: 10.2 - 10.6

Thread Length: –

Product Code: MU.M8-14

Thread: M8

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 13.6

Ø B: –

head: –

Ø C: 11.0

Install Hole Ø: 10.2 - 10.6

Thread Length: –

Product Code: MU.M10-10

Thread: M10

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 10.5

Ø B: –

head: –

Ø C: 13.5

Install Hole Ø: 12.5 - 13.0

Thread Length: –

Product Code: MU.M10-16

Thread: M10

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 16.1

Ø B: –

head: –

Ø C: 13.5

Install Hole Ø: 12.5 - 13.0

Thread Length: –
