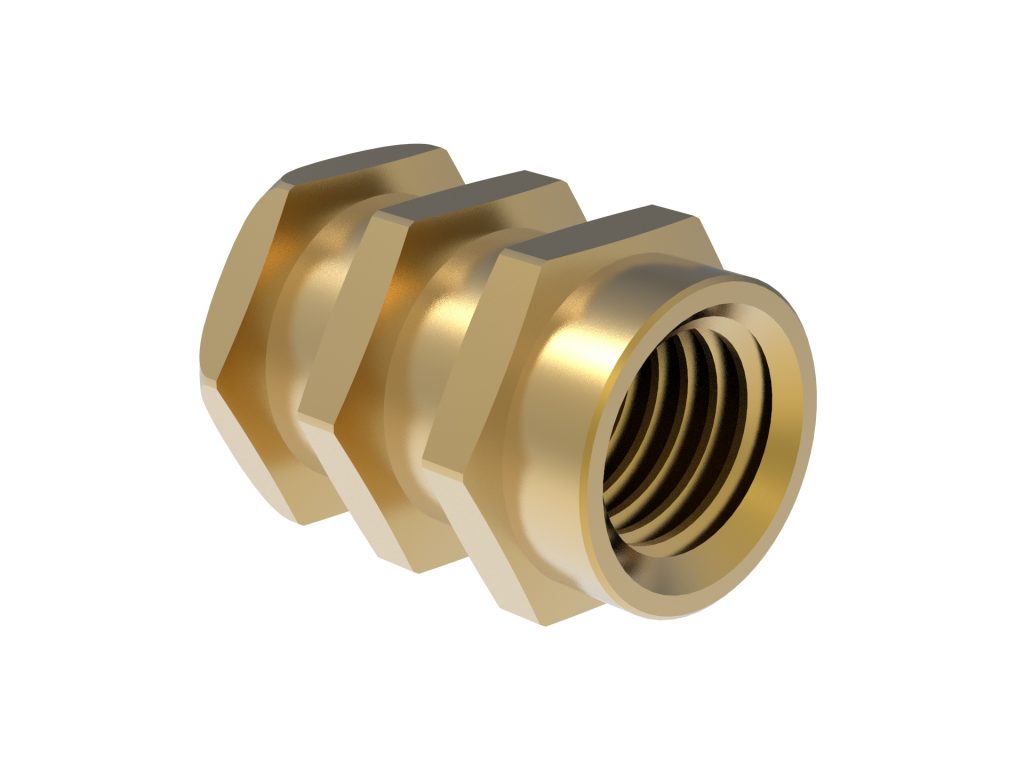

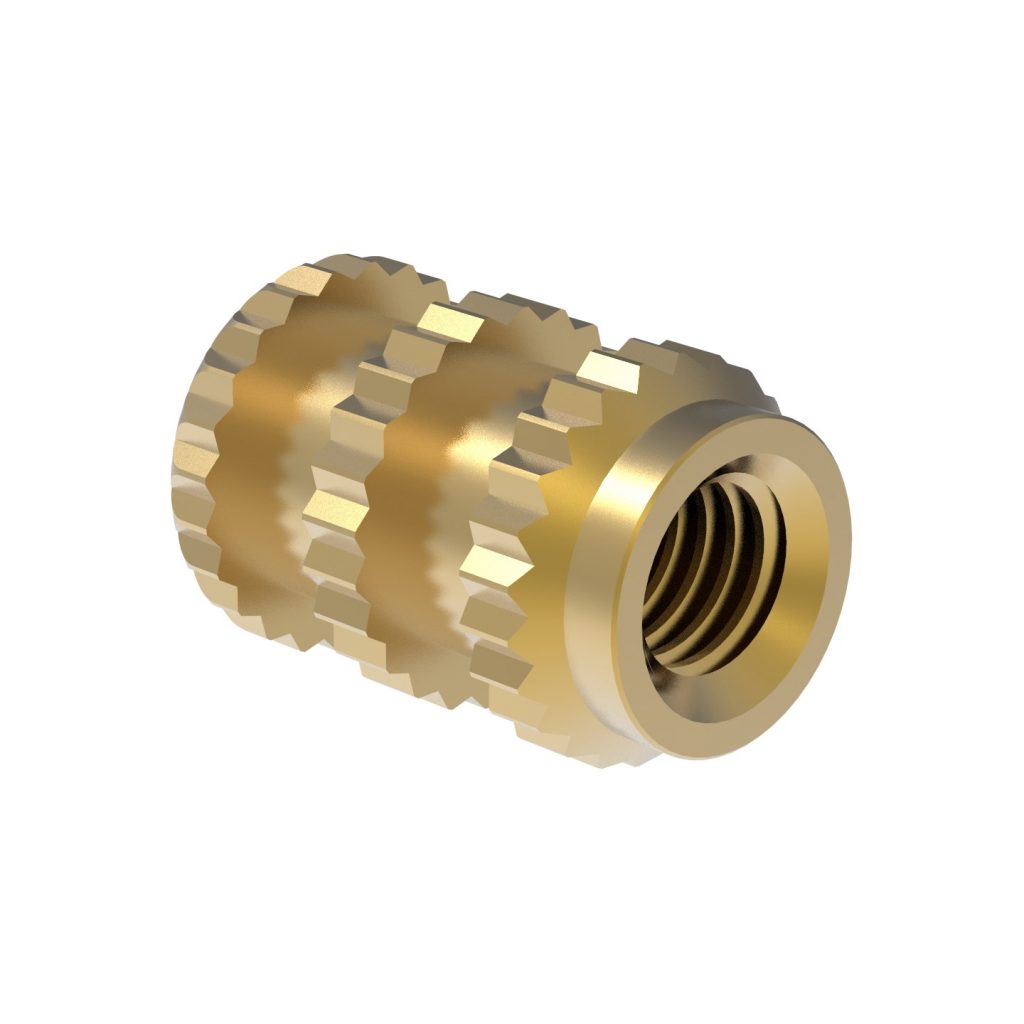

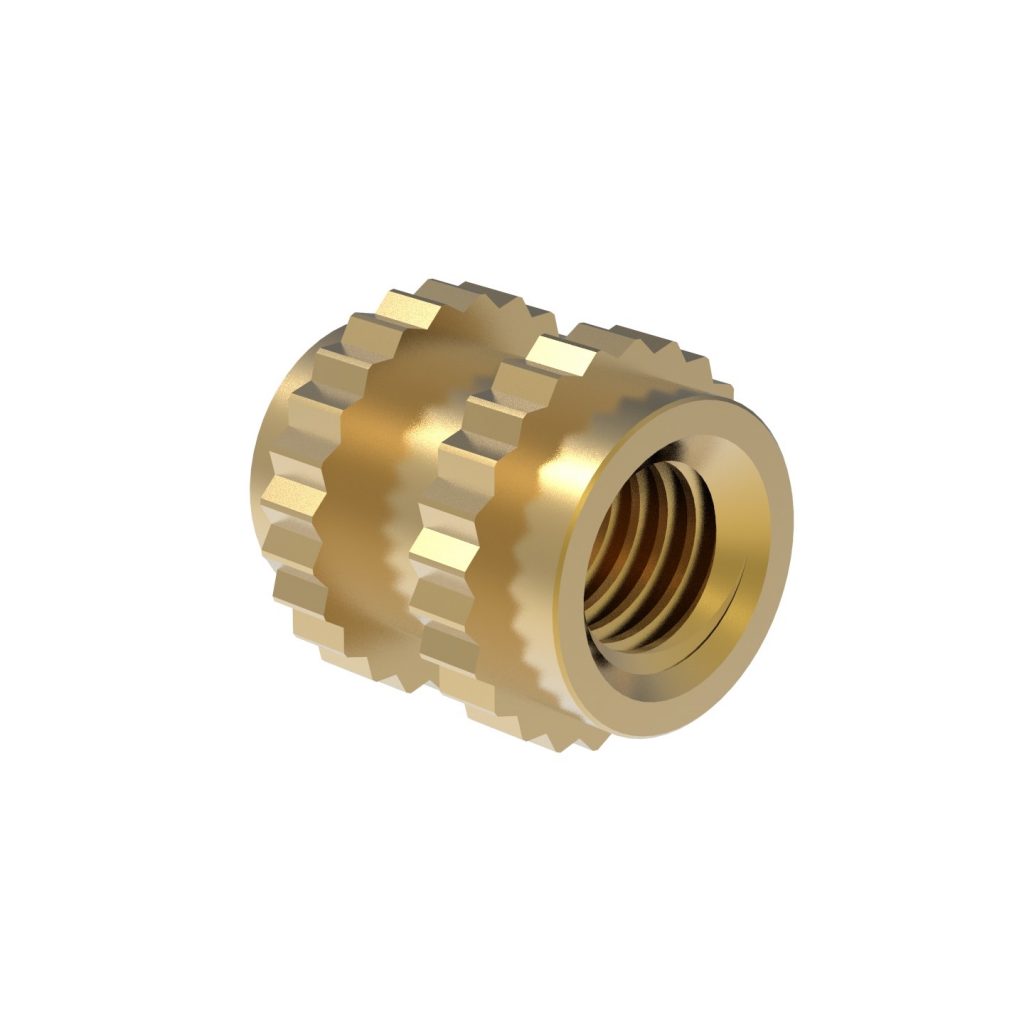

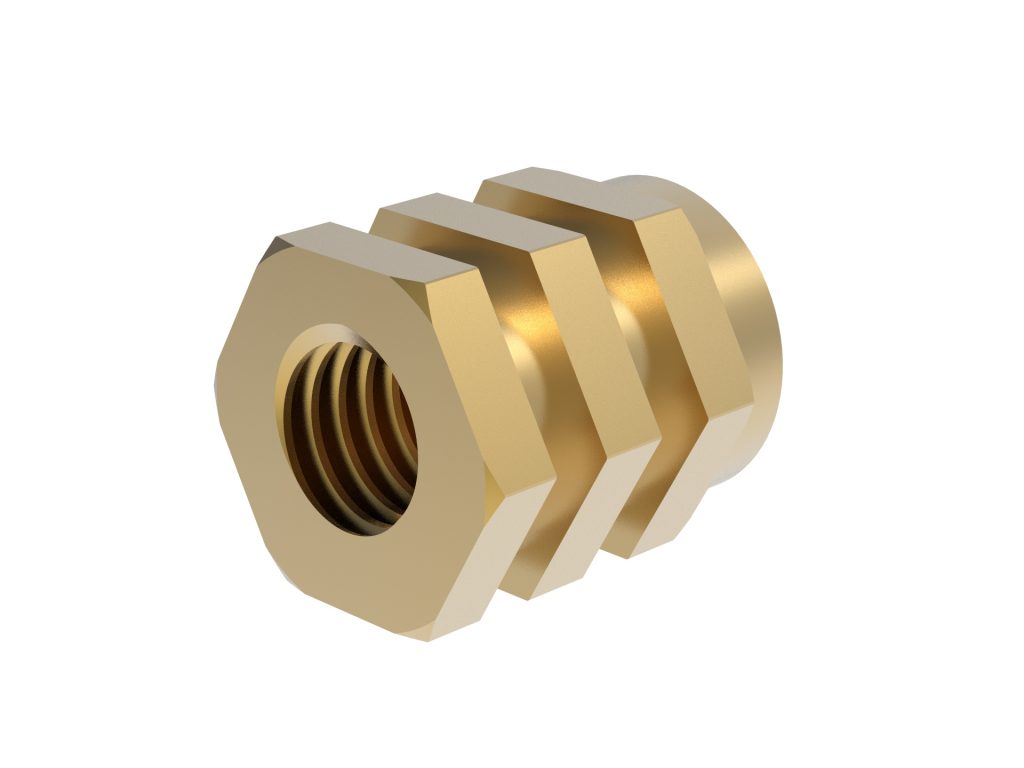

CP Compact Metric Series - Brass
Slim profile Threaded Inserts for Rotational Moulding

Use in limited space applications and thin wall products
Economical
Deep grooves
Thru thread and Blind thread styles
Stocked in thread sizes: M3 - M12

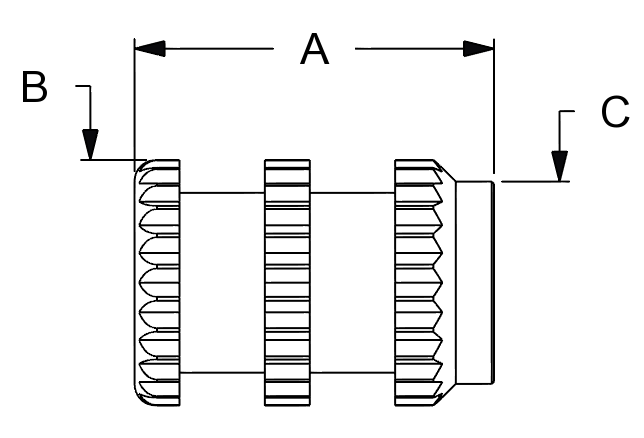

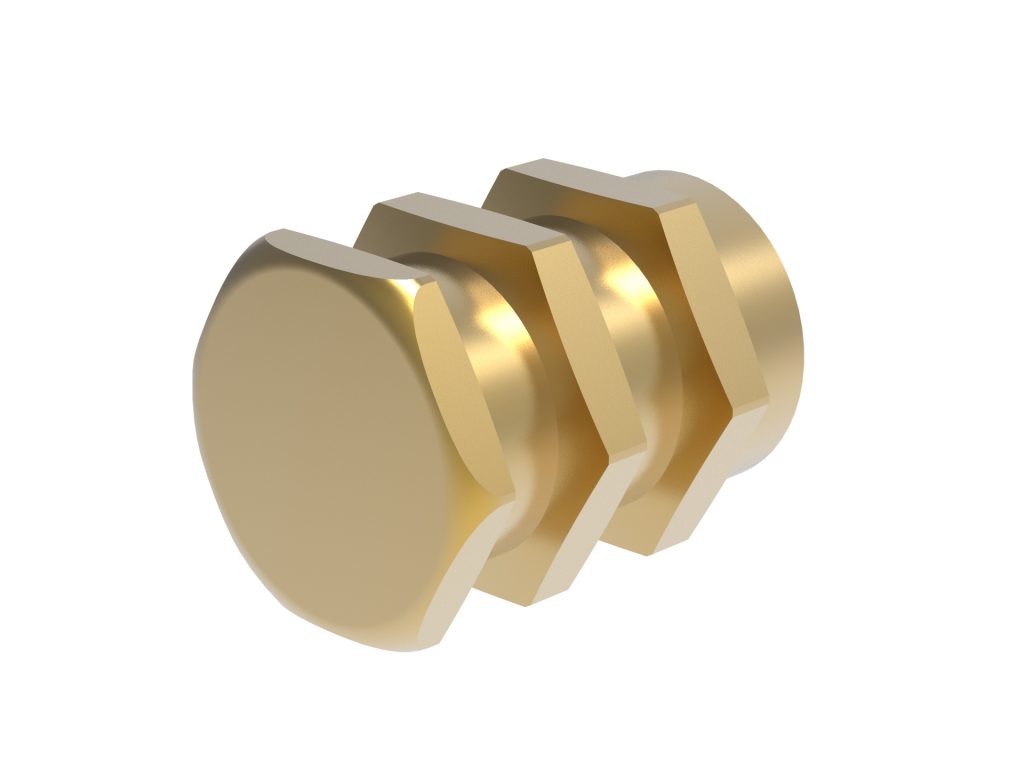

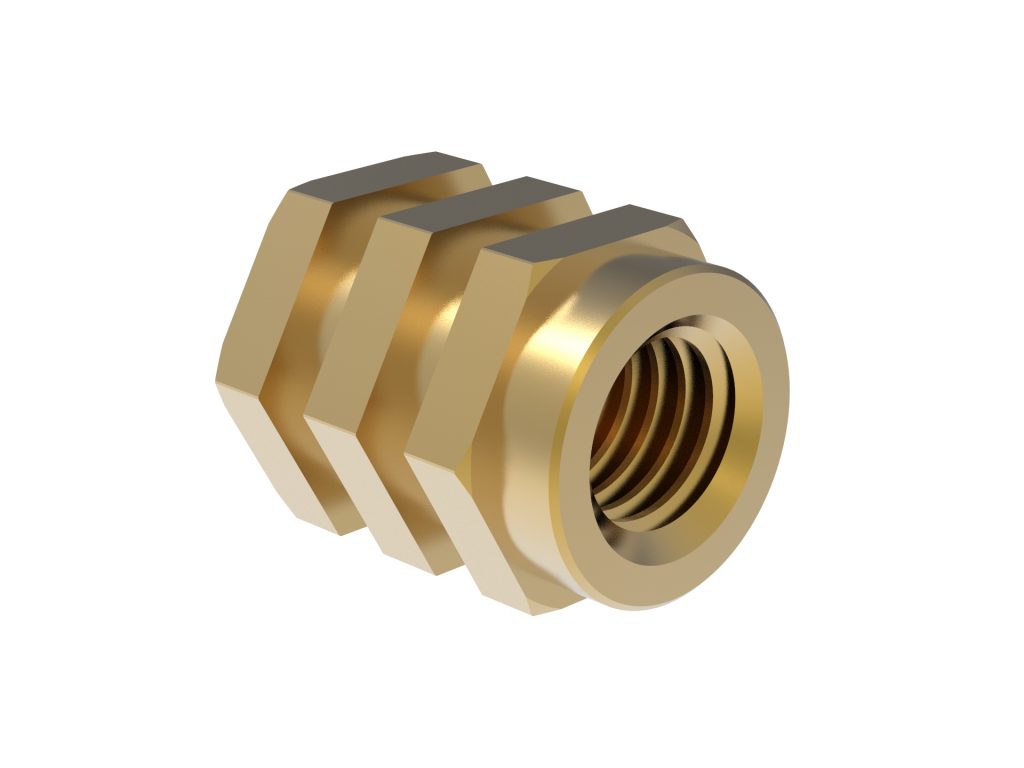

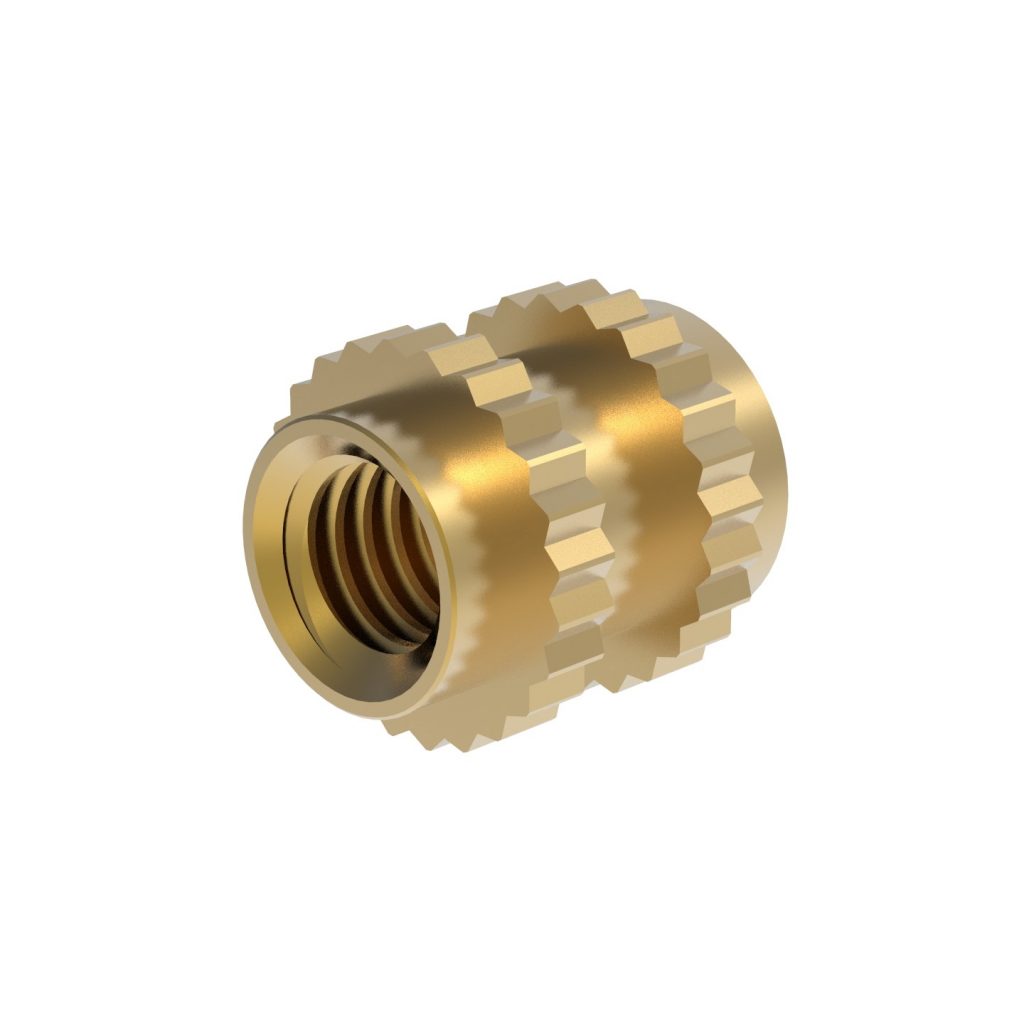

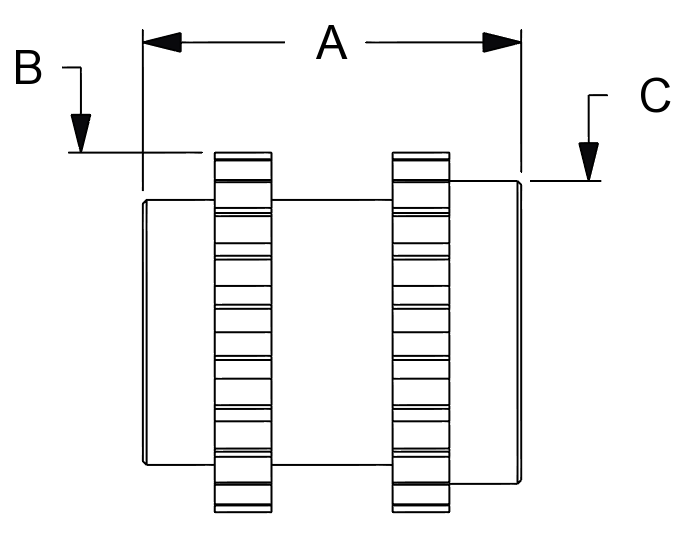

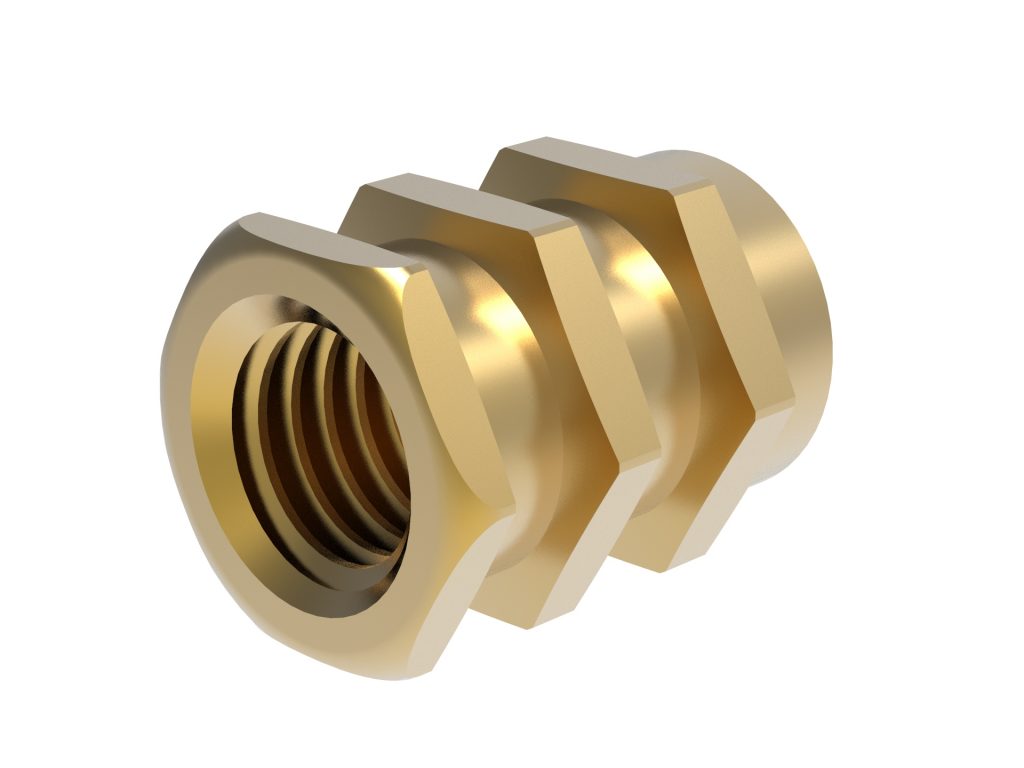

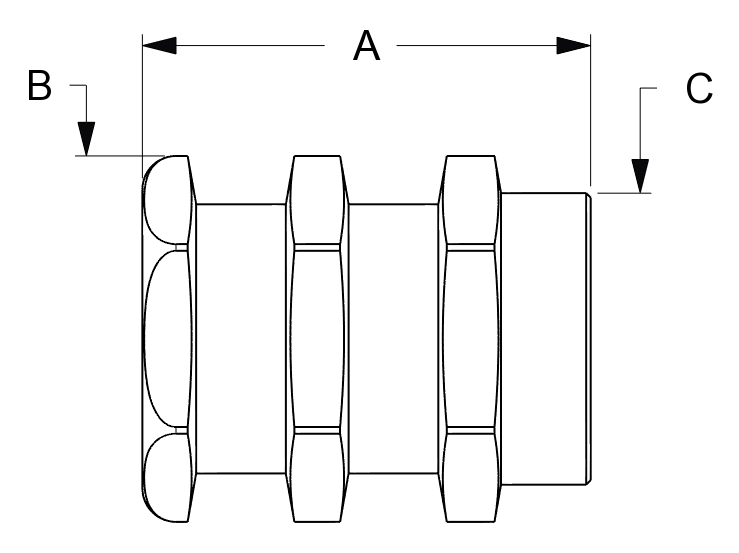

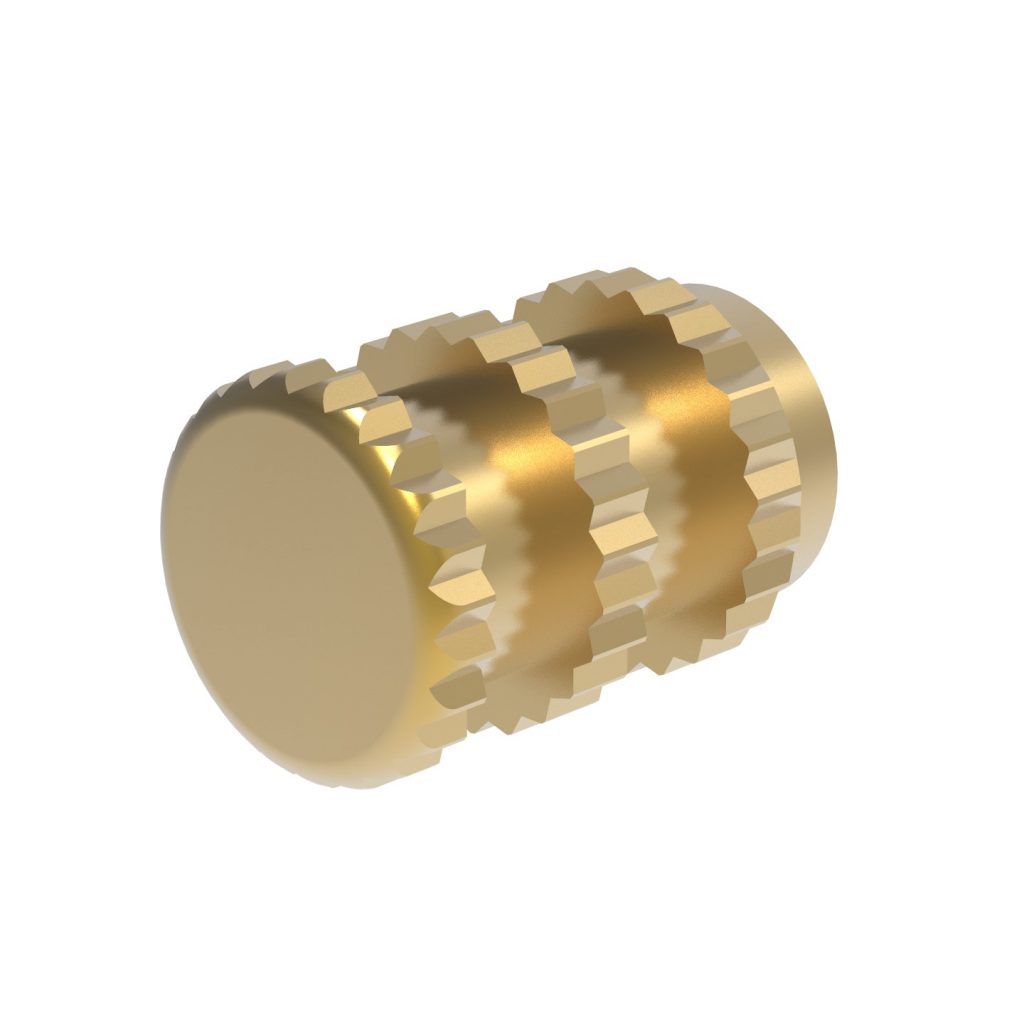

↓ Scroll and select product code to show Images and Drawing

Pricelist

Product Code

Thread

Thread Style

Head Style

Dimensions (mm)

Length (A)

Ø B

Head (B)

Ø C

Install Hole Ø

Thread Length

Product Code: CP.M3-12B

Thread: M3

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 8

head: –

Ø C: 7

Install Hole Ø: –

Thread Length: 4.5

Product Code: CP.M4-10

Thread: M4

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 10

Ø B: 7 hex

head: –

Ø C: 6.5

Install Hole Ø: –

Thread Length: 10

Product Code: CP.M4-12B

Thread: M4

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 8

head: –

Ø C: 7

Install Hole Ø: –

Thread Length: 9

Product Code: CP.M5-10

Thread: M5

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 10

Ø B: 9.5

head: –

Ø C: 7

Install Hole Ø: –

Thread Length: 10

Product Code: CP.M5-13B

Thread: M5

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 13

Ø B: 9

head: –

Ø C: 8

Install Hole Ø: –

Thread Length: 10

Product Code: CP.M6-12

Thread: M6

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 11

head: –

Ø C: 8

Install Hole Ø: –

Thread Length: 12

Product Code: CP.M6-16B

Thread: M6

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 16

Ø B: 11

head: –

Ø C: 9

Install Hole Ø: –

Thread Length: 12

Product Code: CP.M8-18B

Thread: M8

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 18

Ø B: 12.7

head: –

Ø C: 10.5

Install Hole Ø: –

Thread Length: 14

Product Code: CP.M8-16

Thread: M8

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 16

Ø B: 12.7

head: –

Ø C: 10.5

Install Hole Ø: –

Thread Length: 16

Product Code: CP.M10-20

Thread: M10

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 20

Ø B: 14.3 hex

head: –

Ø C: 13

Install Hole Ø: –

Thread Length: 20

Product Code: CP.M10-20B

Thread: M10

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 20

Ø B: 14.3 hex

head: –

Ø C: 13

Install Hole Ø: –

Thread Length: 15

Product Code: CP.M12-22B

Thread: M12

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 22

Ø B: 16 hex

head: –

Ø C: 15

Install Hole Ø: –

Thread Length: 18
